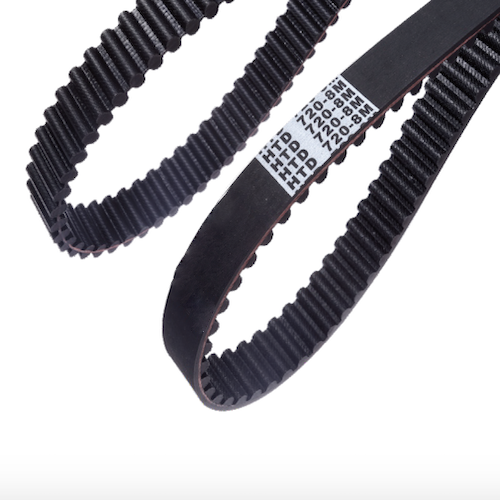

HTD Type Timing Belts

HTD belts have a larger, more robust tooth profile for increased capacity, as compared to trapezoidal timing belts. They are suitable for many applications including data storage, hand power tools, postage handling, food processors, office machines, centrifuges, money handling, medical diagnostic, sewing machines, ticket dispensers, robotics, vending machines, and vacuum cleaners.

Description

FEATURES/ADVANTAGES:

Fiberglass tensile cord provides high strength, excellent flex life, and high resistance to elongation.
Neoprene body provides protection against grime, grease, oil, and moisture.
Nylon tooth facing provides a durable wear surface for long service life.
Thirty percent increase in horsepower ratings, as compared to traditional timing belts.
Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives.

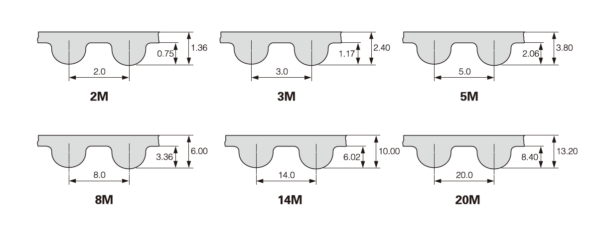

HTD part numbers are comprised of pitch, pitch length and width. For example; part number 900-3M-15 denotes a 900mm pitch length, 3mm pitch and 15nnnn width.
