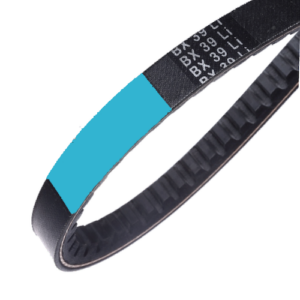

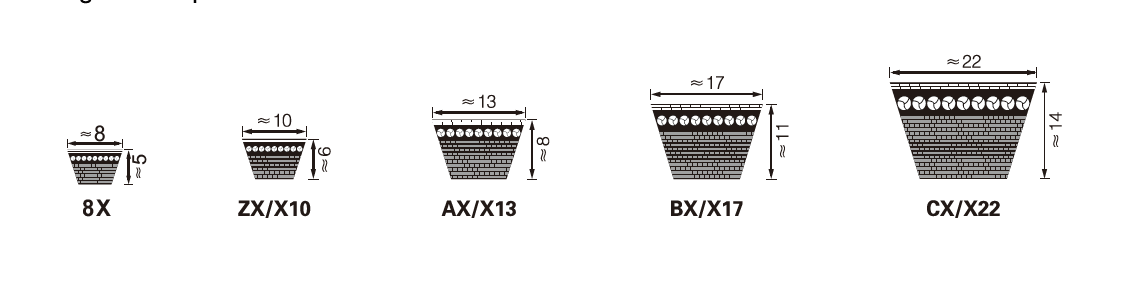

UncategorizedClassical Raw Edge Cogged V-belt
Read moreBelts with cogs underside thereby reducing the bending resistance of the belts and allowing them to operate on pulleys with approximately 20% smaller diameters. The decreased bending resistance reduces mechanical efficiency and reduced working temperature. Heat dissipation is further improved by the larger area between the belt and the surrounding atmosphere and also by the air turbulence around the cogs during operation. These belts require a higher tension than the wrapped belts so as to exhibit higher power transmission capacity.
-

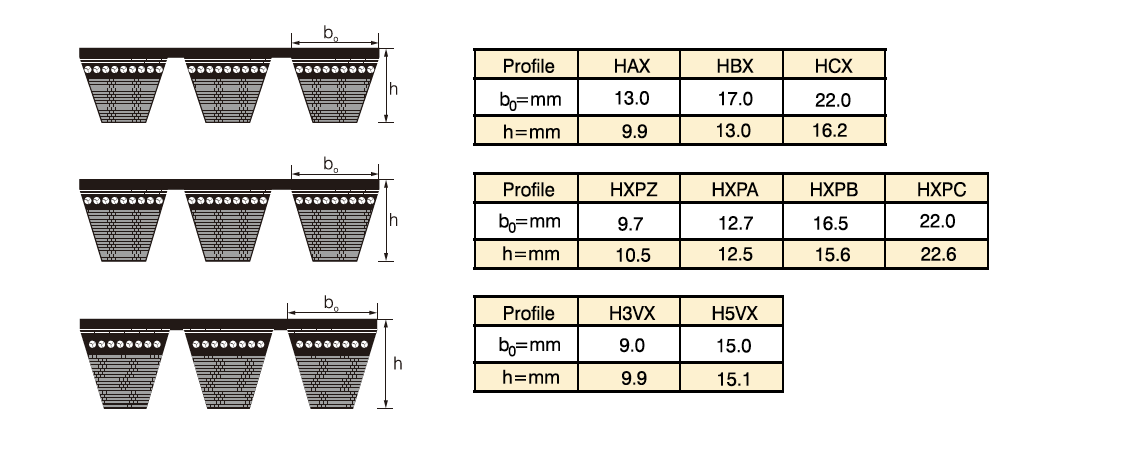

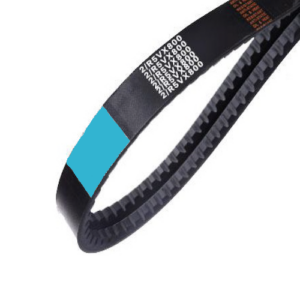

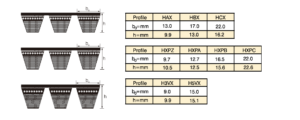

UncategorizedCogged Banded V-Belts
Read moreCogged banded belts are an excellent choice for virtually any application where increased horsepower capacity or output is needed. Or where conventional, single or multiple belt drives are impractical because of space or weight limitations. BINLONG banding process assures smoother, quieter operations. The specially compounded wrap construction is ideal for clutching operations. And it won’t turn over or jump off the drive.
-

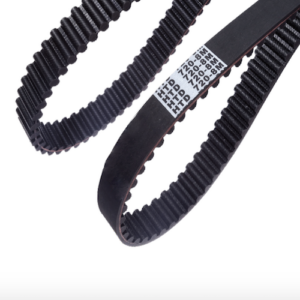

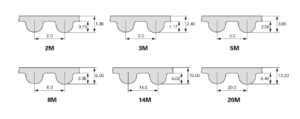

UncategorizedHTD Type Timing Belts
Read moreHTD belts have a larger, more robust tooth profile for increased capacity, as compared to trapezoidal timing belts. They are suitable for many applications including data storage, hand power tools, postage handling, food processors, office machines, centrifuges, money handling, medical diagnostic, sewing machines, ticket dispensers, robotics, vending machines, and vacuum cleaners.
-

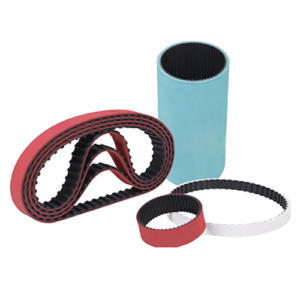

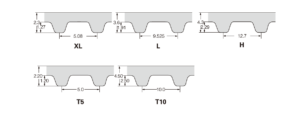

UncategorizedLinatex/Top Coating Timing belts
Read moreCoating Timing Belt opens up new segment of market in packaging industry and lighter material carrying application where power transmission is to be done with the help of timing
- Belt with soft profile top rubber is used for conveying lighter & fragile materials where no scratches are desirable like in shampoo sachet making, wafer manufacturing industry and bottling plants.
- Belt with regular profile top rubber is used in wire drawing &cable industries for giving support in take-up caterpillar &other similar operations in manufacturing industries.
- Operating Temperature Range: -18°Cto +80°C
- Product Range: Available in all Timing belt sections
-

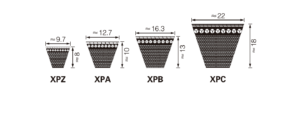

UncategorizedMetric Raw Edge Cogged V-Belts
Read moreXP series belts have the same description as the METRIC WRAPPED V-BELTS DIN 7753 SPZ – SPA – SPB and SPC, except they are raw edge cogged, for the rest they are identical. Due to the fact they are cogged the designation is slightly different. Basically, it is the same except for the S which is replaced by an X to indicate they are cogged. This means an SPZ becomes an XPZ, an SPA an XPA and so on.
-

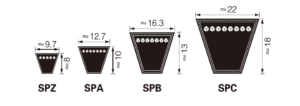

UncategorizedMetric Wrapped Wedge V-Belts
Read moreMetric Wrapped V-Belts allow more power per belt and therefore permit wedge belt drives. They are also matched, oil-heat resistant and static dissipating. As a general rule, the numbering system starts by SP letters, followed by the cross-section designations Z-A-B-C and numbers giving the pitch length. However, some belts will either identify the length by adding the following letters after the number, LA for outside circumference LI for inside circumference, or LW for pitch circumference.
-

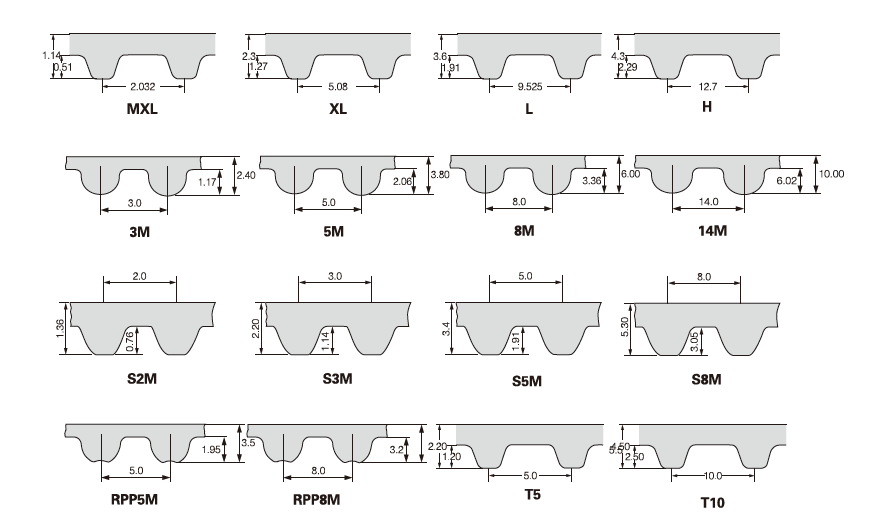

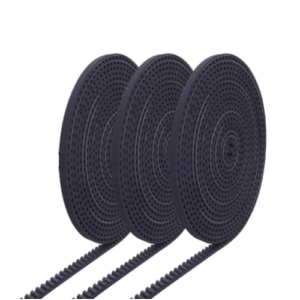

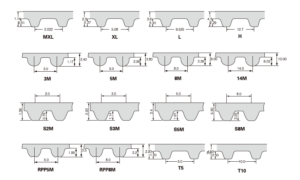

UncategorizedOpen-End Timing Belts
Read moreRubber Open-End Belting is well suited for use in positioning applications, which is a cost effective, low maintenance drive alternative.
MARKETS/APPLICATIONS:
Well suited for linear movement, positioning and conveying applications.
-

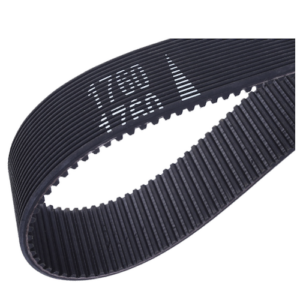

UncategorizedRoller Mill Belts
Read more- Special rubber compound for high frictional grip
- Ribbed driving surface for maximum area of contact and reduced surface pressure
- Fiberglass cord for high tensile strength, excellent flex life and high resistance to elongation
- Polychloroprene rubber teeth for perfect bonding, protecting the cords from oil, grease, and moisture
- Sprocket side of the timing belt has special woven nylon fabric which is chemically treated to reduce friction it is resistant to heat and abrasion, protecting the teeth from getting damaged
-

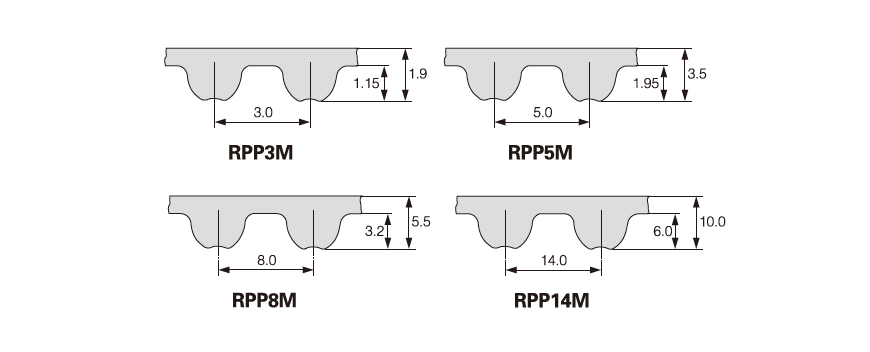

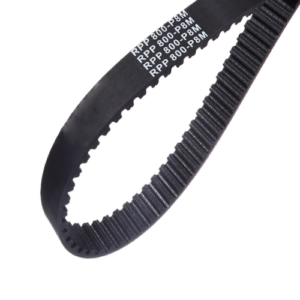

UncategorizedRPP Type Timing belts
Read moreRPP belts have a larger, more robust tooth profile for increased capacity, as compared to trapezoidal timing belts. They are suitable for many applications including data storage, hand power tools, postage handling, food processors, office machines, centrifuges, money handling, medical diagnostic, sewing machines, ticket dispensers, robotics, vending machines and vacuum cleaners.
-

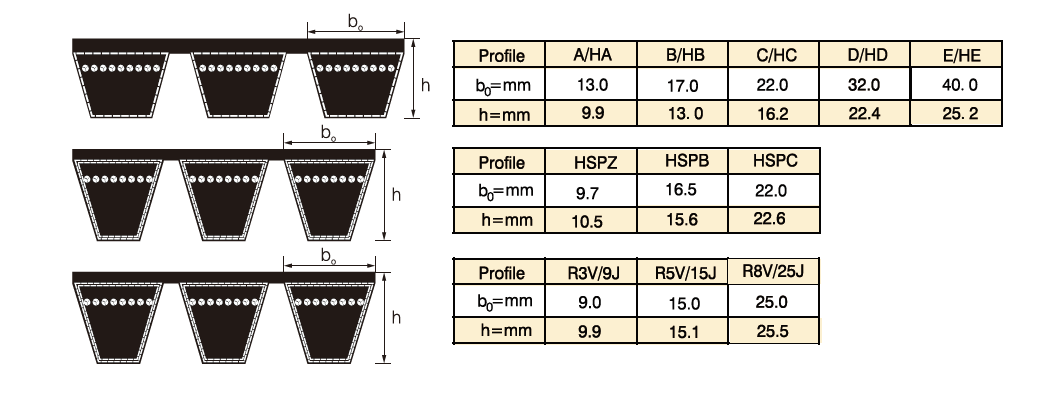

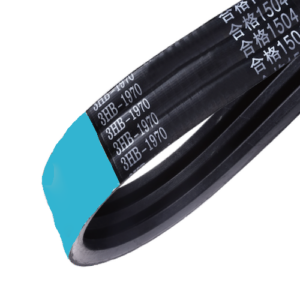

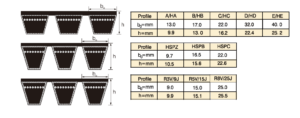

UncategorizedWrapped Banded V-Belts
Read moreFEAUTURES:
- Enhanced power transmission capacity
- Antistatic, oil and heat resistant
- Better resistance to vibrations
- High stability and smooth running on the toughest drives
APPLICATIONS:
All Banded belts are high power belts. While using standard pulleys with a proper guard. Appropriate belt sitting for the belts and that of pulleys is the same. We recommend details before using banded belts to enable us to provide banded belts can lead to premature failure of the drive system these belts it is always recommended to use can only be obtained if the pitch maintained that the customer should get back to us with the best solution. Improper design using banded belts can lead to premature failure of the drive system.
- Severe vibrations
- Vertical shaft drives
- V-flat drives
- Agricultural drives
- Conveyer systems
- Stone crushers, reciprocating compressors, generator sets, pumps cold forging machine
